The work launch is a simple but robust multi-purpose heavy-duty vessel. With a split hull and 6X couplings of 50T break capacity and a dismountable wheelhouse making it 100% road transportable.
Weight 20Tons each per hull 40Tons total
Speed 15.5Km/h 8.3Knots
Bollard Pull: 4.2 Tons
The vessel has a “no nonsense” design and is very popular in marine operations in shallow waters, including pushing, pulling, anchor handling, dredging support, transport of goods, fuel and personnel.
It is high maneuverability and hydraulic steering and has an integrated steel sheer stroke around the vessel that absorbs impact forces.
Dimensions
Length 10.30 m or 12M version
Beam 5.05 m ( 2X 2,5M parts )
Depth 1.80 m
Draught aft 1.30 m
Main engines Iveco 180 HP/132Kw
Optional 2X Iveco 220HP/162Kw
Two fuel tanks 2X 2Cubm capacity
Propellers two 4Blade bronze propellers, Diameter 75 cm approx
Steering gear Hydraulic
Optional 2X Nozzles for increased power
Single hull version in 10/12M also available!
- Vessel type:
- Multi Worker 10M/12M support vessel optional: dismountable
- General information:

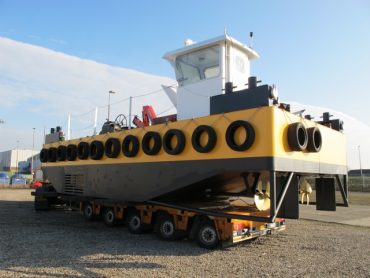

- Pictures of 12M Dismountable version
- Propulsion:
- Optional 2X 360Hp/264Kw MKII version with nozzles 7TBP!
- Capacity's:
- All Dutch Build Weight 40 Tons ( 2X20T)
- Remarks:
Optional:
Air-conditioning/heating, electric installation 230V network, towing hook, winch on deck, generator, radar system, accommodation, fuel oil transfer, ballast pumps, hydraulic crane.
- Asking price:
- Very competitive! 4 months building time and all Dutch!
