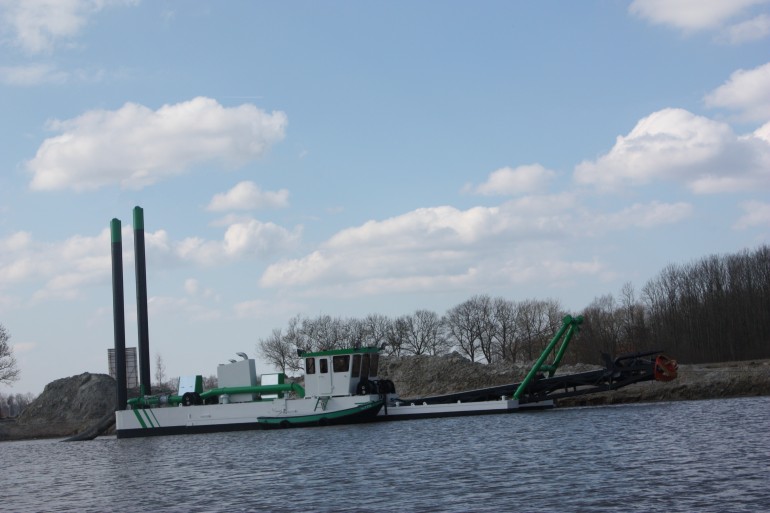

Suction Dredger 450MM

Cutter Suction Dredgers (CSD) up to 60 m (pump on the ladder).
All these HDD Suction Dredgers are equipped with a high pressure jet pump, which injects in the bottom to erase the material which the pipe can suck up.

MDH Vessel nr:

14314

Vessel type:

CSD 450MM can be delivered up to 600MM pipe diameter

Description:

14314

Remarks:

HDD CSD-450



General information: Length overall, ladder rated Length over pontoons Breadth Depth Main draught (full bunker) Max. standard dredging depth I.D. of Suction and Discharge Total dry weight	35.00 m 26.00 m 8.00 m 1.90 m 1.20 m 10.80 m 450 mm 76 tns	Body section: Main pontoon Side pontoons Cabin	11.00 x 3.05 x 2.50m 24.00 x 2.50 x 1.80m 1.50 x 2.40 x 2.00m
Ladder section Ladder length o.a. Cutter type HDD 30/50, 5 blades Cutting power Diameter Maximum speed	15.5m with pick points 150KW (200hp) 1450mm 35 rev./min.	Spud section Length Diameter  Weight Swing width, Max. DD		15.00m 450mm 2200kg 35 each side 14.50m
Pump section Dredge pump type Power at shaft Dredge pump driven via combined pump bearing block/ clutch / reduction gearbox	HDD  450-300-700 700  KW	Power section Main engine Diesel engine          Power Continue Auxiliary engine		950 HP 1800 rev./min. 300 HP
Hoisting section Ladder Hoisting Ram Swing winches Spud Hoisting rams Deck crane lifting power Deck crane reach	20 kN 2.80 m	Options Ladder length Spud carriage Anchor booms Swivel bend Non return valve Velocity / density meters Air co		max. 17m





Remark: can  be delivered also in 600 mm pipe diameter version

Asking price:

P.O.A.
